In a typical configuration, "E" = Face-to-Face Distance
* See manufacturer's data for dimension.
How to Select A MacMillin Mount
1. BASIC MOUNT TYPE - Using motor frame size and chart below, select the basic Mount type to fit the NEMA-C face. Example: Size 284-TC will accept Type 3 Mounts.
|
|
In a typical configuration, "E" = Face-to-Face Distance * See manufacturer's data for dimension. |
2. PUMP
END STYLE - From pump manufacturers data, determine mounting
style, shaft length and pilot thickness of pump. Standard SAE 2
& 4 bolt styles are shown below.
* See manufacturer's data for dimension.
3. PROPER LENGTH - Face-to-face distance (Dimension E)
must accommodate length of motor shaft (Dimension AH), pump shaft
and pilot thickness. Allow at least 3/16" clearance between

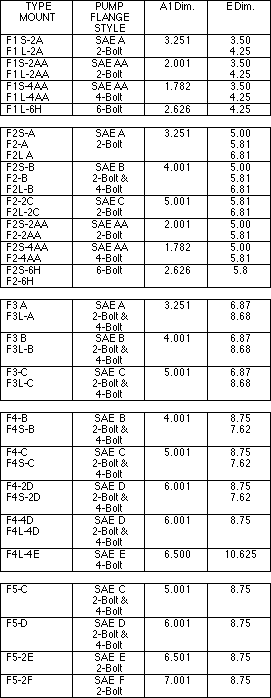

shafts. Then select appropriate mount from tables below.
